Sine Law - Ambiguous case - applet

The ambiguous case of the sine law, in solving triangle problems, is explored interactively using an applet.

The sine law is given by

sin(a)/a = sin(b)/b = sin(g)/c

Let us solve the triangle problem when we are given sides a and b and angle
a, with a acute.

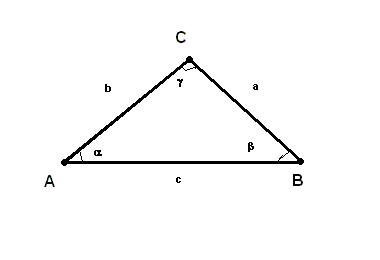

Triangle ABC

The algebraic solution to this problem starts by finding sin(
b) which is given by

Then find angles
b and g and side c.

For the triangle to exist sin(
b) must be less than or equal to 1.

There is also a GEOMETRIC solution to this problem which we describe below.

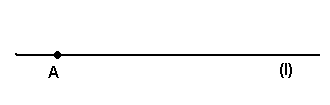

step 1: draw a line (l) and draw point A on this line.
Horizontal line (l)

step 2: draw a segment AC that makes an angle
a with line (l). Segment AC has length b.
Horizontal line (l) and segment AC

step 3: Draw a circle with center at C and radius equal to side a and locate the points of intersection of the circle and line (l). Three cases are possible.

   case 1: if a is smaller than h ,the circle does not intersect line (l) and the problem has no solution.

   case 2: if a is equal to h, the circle touches line (l) at 1 point and the problem has one solution. Triangle ABC is a right triangle.

   case 3: if a is larger than h, but smaller than b, the circle intersects line (l) at 2 points and the problem has 2 solutions: Triangle ABC and Triangle AB'C. This is called the ambiguous case.

   case 4: if a is larger than or equal to b, the problem has one solution.

step 4: draw the third side of the triangle(s) by joining C and B, and C and B'. The figures below show the case with two solutions.
intersection of circle with line

triangles , solutions

Interactive Tutorial

Your browser is completely ignoring the <APPLET> tag!

  1. click on the button above "click here to start" and MAXIMIZE the window obtained.

  2. Use the sliders to set parameters b and alpha to 3 and 30 degrees respectively if they are not already. Use the red point on the circle to increase or decrease the radius a of the circle.

  3. Find a value of a that correspond to a case with no solution as described above and check by calculations.

  4. Find a value of a that correspond to a case with 1 solution as described above and check by calculations.(this may be a little difficult to do , but a close value should be enough).

  5. Find a value of a that correspond to a case with 2 solutions as described above and check by calculations.

  6. Find a value of a that correspond to a case with 1 solution as described above and check by calculations.

  7. Set b and alpha to other values and explore further.
